An ExpressionNode that handles multiplications and divisions. More...

Inheritance diagram for uk.co.cogitolearning.cogpar.MultiplicationExpressionNode:

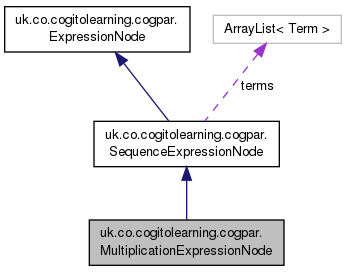

Collaboration diagram for uk.co.cogitolearning.cogpar.MultiplicationExpressionNode:

Public Member Functions
	MultiplicationExpressionNode ()
	Default constructor.
	MultiplicationExpressionNode (ExpressionNode a, boolean positive)
	Constructor to create a multiplication with the first term already added.
int	getType ()
	Returns the type of the node, in this case ExpressionNode.MULTIPLICATION_NODE.
double	getValue ()
	Returns the value of the sub-expression that is rooted at this node.
void	accept (ExpressionNodeVisitor visitor)
	Implementation of the visitor design pattern.
Public Member Functions inherited from uk.co.cogitolearning.cogpar.SequenceExpressionNode
	SequenceExpressionNode ()
	Default constructor.
	SequenceExpressionNode (ExpressionNode a, boolean positive)
	Constructor to create a sequence with the first term already added.
void	add (ExpressionNode node, boolean positive)
	Add another term to the sequence.

Additional Inherited Members
Static Public Attributes inherited from uk.co.cogitolearning.cogpar.ExpressionNode
static final int	VARIABLE_NODE = 1
	Node id for variable nodes.
static final int	CONSTANT_NODE = 2
	Node id for constant nodes.
static final int	ADDITION_NODE = 3
	Node id for addition nodes.
static final int	MULTIPLICATION_NODE = 4
	Node id for multiplication nodes.
static final int	EXPONENTIATION_NODE = 5
	Node id for exponentiation nodes.
static final int	FUNCTION_NODE = 6
	Node id for function nodes.
Protected Attributes inherited from uk.co.cogitolearning.cogpar.SequenceExpressionNode
ArrayList< Term >	terms
	the list of terms in the sequence

Detailed Description

An ExpressionNode that handles multiplications and divisions.

The node can hold an arbitrary number of factors that are either multiplied or divided to the product.

Constructor & Destructor Documentation

uk.co.cogitolearning.cogpar.MultiplicationExpressionNode.MultiplicationExpressionNode	(	ExpressionNode	a,
		boolean	positive
	)

Constructor to create a multiplication with the first term already added.

Parameters

node	the term to be added
positive	a flag indicating whether the term is multiplied or divided

void uk.co.cogitolearning.cogpar.MultiplicationExpressionNode.accept ( ExpressionNodeVisitor visitor )

Implementation of the visitor design pattern.

Calls visit on the visitor and then passes the visitor on to the accept method of all the terms in the product.

Parameters

visitor the visitor

double uk.co.cogitolearning.cogpar.MultiplicationExpressionNode.getValue ( )

Returns the value of the sub-expression that is rooted at this node.

All the terms are evaluated and multiplied or divided to the product.

The documentation for this class was generated from the following file:
