uk.co.cogitolearning.cogpar.Parser Class Reference

A parser for mathematical expressions. More...

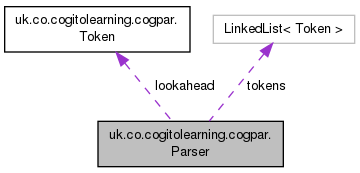

Collaboration diagram for uk.co.cogitolearning.cogpar.Parser:

Public Member Functions
ExpressionNode	parse (String expression)
	Parse a mathematical expression in a string and return an ExpressionNode.
ExpressionNode	parse (LinkedList< Token > tokens)
	Parse a mathematical expression in contained in a list of tokens and return an ExpressionNode.

Private Member Functions
ExpressionNode	expression ()
	handles the non-terminal expression
ExpressionNode	sumOp (ExpressionNode expr)
	handles the non-terminal sum_op
ExpressionNode	signedTerm ()
	handles the non-terminal signed_term
ExpressionNode	term ()
	handles the non-terminal term
ExpressionNode	termOp (ExpressionNode expression)
	handles the non-terminal term_op
ExpressionNode	factor ()
	handles the non-terminal factor
ExpressionNode	factorOp (ExpressionNode expr)
	handles the non-terminal factor_op
ExpressionNode	argument ()
	handles the non-terminal argument
ExpressionNode	value ()
	handles the non-terminal value
void	nextToken ()
	Remove the first token from the list and store the next token in lookahead.

Detailed Description

A parser for mathematical expressions.

The parser class defines a method parse() which takes a string and returns an ExpressionNode that holds a representation of the expression.

Parsing is implemented in the form of a recursive descent parser.

Definition at line 64 of file Parser.java.

Member Function Documentation

ExpressionNode uk.co.cogitolearning.cogpar.Parser.parse

(

String

expression

)

Parse a mathematical expression in a string and return an ExpressionNode.

This is a convenience method that first converts the string into a linked list of tokens using the expression tokenizer provided by the Tokenizer class.

Parameters

expression

the string holding the input

Returns

the internal representation of the expression in form of an expression tree made out of ExpressionNode objects

Definition at line 83 of file Parser.java.

ExpressionNode uk.co.cogitolearning.cogpar.Parser.parse

(

LinkedList< Token >

tokens

)

Parse a mathematical expression in contained in a list of tokens and return an ExpressionNode.

Parameters

tokens

a list of tokens holding the tokenized input

Returns

the internal representation of the expression in form of an expression tree made out of ExpressionNode objects

Definition at line 100 of file Parser.java.

---

The documentation for this class was generated from the following file:

• Parser.java
